90711 Variable Frequency Oscillator
|
This VFO uses a temperature compensated 6SK7 vacuum tube in an electron coupled
oscillator configuration. Another 6SK7 is used for a buffer or doubler and finally
a 6AG7 tuned amplifier is track-tuned to the oscillator. The power supply is regulated
to improve overall stability of this VFO. In addition, since there is such good
isolation between the oscillator and output the oscillator will not shift in frequency
with an output loading variation from open to short circuit! This VFO was designed

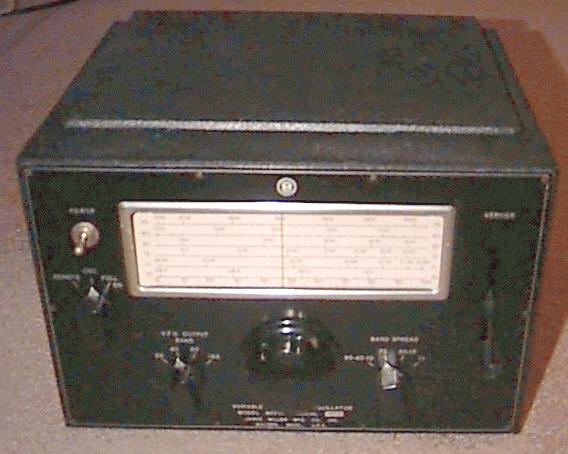

for operation on 160, 80, 40 and 20 meters. If you desire further information on the 90711 check out the article "The Millen Duo" which appears in Electric Radio Magazine, May 1995. The beautiful 90711 pictured here belongs to John Brewer WB5OAU. |
