92201 Transmatch Junior
|
The Millen 92201 is 150 watt transmission line matching unit covering the frequency
range of 3.5 to 29.7 MHz. A very heavy duty piece of equipment utilizing copper
thru-out the chassis. The Millen tuners were designed for matching 10 to 300 ohm
unbalanced loads through coaxial cable only and provided no internal means for matching
to balanced line feeders. The Junior was the brother to the much larger 92200 transmatch
which was able to handle 1 kilowatt. The 92200 series is a later Millen design and

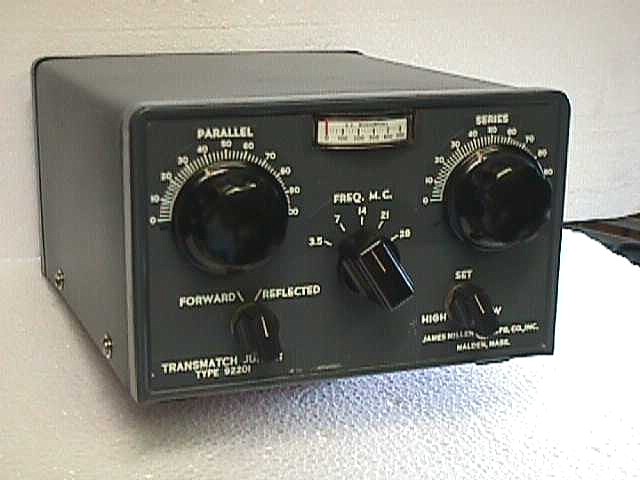

are still available today (see Millen-After-Millen article). Photo provided by Rich WA2RQY. |
